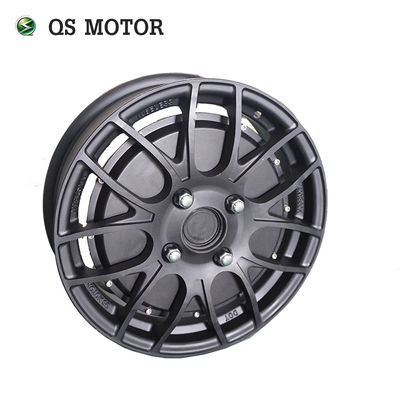

QSMOTOR Waterproof Single Axle 13inch 72V 260 3000W 40H V3 BLDC Electric Scooter In Wheel Hub Motor

QSMOTOR Single Shaft 13inch 72V 260 3000W 40H V3 BLDC Electric Scooter In Wheel hub Motor

For 13inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

There are two width of wheel, 13X3.5inch(800w-7000w), 13X4.25inch(800w-7000w)for choice.

We offer wide tire, 13X3.5inch as default.

For E-scooter wheel hub motor, we also provide the 10-17inch type, you can refer below hyperlink for the detailed information:

1. Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

2. QS Motor 13inch 800-7000W E-scooter/Motorcycle Hub Motor List

Note for 13X4.25inch 260 detachable wheel Motor(Electroplating design): Normal 13inch 260 Motor+ USD: 14.0/PCS.

Only electroplating wheel rim (not side cover).

3. Production Description

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Single axle
Rim size:13x3.5inch(as default), Matched tire:130/60-13 etc.

Magnet Height: 40mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 3000W
Speed(customizable):
48v 30km/h~65km/h 300-900RPM
60v 30km/h~80km/h 300-1100RPM

72v 30km/h~80km/h 300-1100RPM

Max Torque approx 170N.m
KV: 14.17/16.59/16.55/16.08/13.13/14.17 (optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
16mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous

Pictures

Drawing

refer to 13X4.25inch 260 detachable single shaft hub motor

4. How to find suitable hub motor

To customized a suitable motor, could you pls. inform below points:

• 1.E-scooter, E-tricycle or E-car, tire model?
• 2.Volt and wattage of motor, Speed(kV), and torque/climb angle ?
• 3.Your vehicle weight and loading weight?
• 4.Lithium or lead-acid Battery?

After confirming the motor, we could try to offer suitable motor kits.

Motor Controller

Wheel RIM

Battery

Charger

Speedometer

Throttle

Brake System

DC-DC converter, etc.

5.Comapny Information

6.FAQ

Q1. Are you trader or manufacture?

A: We're manufacture.

Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.

Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.

05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
